Tuesday, December 16, 2008

Installing Windvane Self Steering Gear Part 10 - 223

After I mounted the windvane tube through the large hole in my boat, and attached the control lines, I found that my windvane could barely steer my boat.  I called Yves, who has always answered the phone immediately every time I call.  He suspected that the steering oar was undersized for my vessel.  He took it upon himself to look my boat up after the call, and sent me an email to tell me that I had rigged my windvane up incorrectly.  The picture above is the one he saw.  My control lines need 2 to 1 purchase in order to work correctly.  The way I have them set up here is 1 to 1.
I guess the lesson in this is that as soon as you yourself get your windvane set up, snap a digital photo and send it to Yves.  He will very likely have some suggestions to improve your set up.  He very much wants your vane to work perfectly, and unlike some companies who sell products they haven't actually used, Yves has the experience it takes to actually help you.  Am I a fan?  Well, have you ever had a company look you up on the web and check out how you are using their product and then emailing you with a fix for the problem you are having?  First time for me.


Thursday, December 11, 2008

Installing Windvane Self Steering Gear Part 9 - 218

Note: If you have been referred here by another site,
this is only part of a multipart series.
Once you drill the holes in the mounting tube and the windvane tower you have a little bit of a problem.  You have a long tube with holes in it, and you have backing plates and screws - but you do not have a way to get the backing plates in the tubes.  This calls for a little of what Gollum calls "getting tricksy".   This part of the job is definitely a two person task.  Take a string and tie a nail to it.  Drop the nail through the tube end to end and then tie the backing plate to the string that is now through the tube.  Cap Horn supplies some double sided tape so that the backing plate will stay in place once you line it up an get a screw in place, but it didn't help me.  Once you line up the plate with one of the holes, put a screw in it without putting your strut in place.  Now remove the string.  What I did was take my lighter and burn the string off the plate.  Now, put your strut mount over the second hole sideways (leaving the first screw in for now).  Put your second screw in through the strut mounting plate into the backing plate.  Now remove the first screw and turn the strut mounting plate so that it lines up with the second hole and backing plate.  Now thread the second screw through the strut mounting plate into the backing plate.

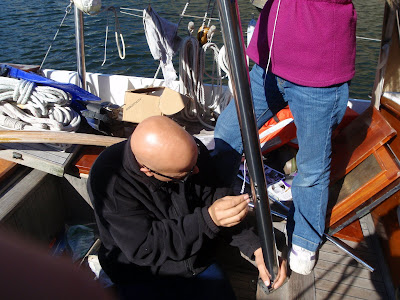

Here my daughter Bianca pulls the string up and down to line up the holes.
Sorry about the glare from my head.



I used a small nail to help line up the backing plate before I put the first screw in.



Just as you think you have it all lined up something moves.



I use my lighter to burn the string off of the plate.  I already have one screw threaded in.




Tuesday, December 09, 2008

Installing Windvane Self Steering Gear Part 8 - 216

Note: If you have been referred here by another site, this is only part of a multipart series.  To see the rest of the story click here and start from the bottom.

The next step in installation is mounting the unit to the boat.  This is only difficult if you haven't spent the time to figure out exactly where everything is supposed to go beforehand.  It will also be difficult if you do not have sharp drill bits.  My 5/16th drill bit was in good shape, I had only drilled wood with it up to this point didn't survive the process of drilling all the holes for the support struts.  Fortunately, I had a spare tungsten carbide drill bit that barely made it to the end of the job and required replacement when I was done.  The steel used in building the wind vane is 316 stainless.  This is a very corrosion resistant high grade steel.  Most of the stainless that I have been used to working with is 304.  304 is much softer than 316.  There are also differences between the foundries that make 316, and the steel on the Cap Horn is highly polished and very hard.  It will eat at least two of the highest grade drill bits you can buy.
The first step in drilling is making sure you have the positions for all the pieces right.
The next step in drilling is taking a break and remeasuring all the positions.
The third step in drilling is to take a punch and dent the exact spot where you want the hole.  Without the dent you will chase your spot around and end up scratching your beautiful mounting tube.
The fourth step is to drill the hole.

The drilling goes easy with a sharp bit and a good dent where you want it.  If you are having trouble you are doing something wrong.  I did all the work in the cockpit of my boat.  It is more hassle than setting up in a work shop, BUT as soon as you start working away from your boat you lose situational awareness and get mixed up and drill things in the wrong spot.   I suppose you could set up in a work shop vice after you center punch your drilling spots, but the final steps should be done in the cockpit.

Now you take a fine rat tail or round file and deburr the holes that you have drilled.  I elongated one pair of holes and widened the other pair of holes.  In this way when mounting the unit I could match the two struts that attach to these holes in both axis of movement.

Next step:  Getting the backing plates in.




Tuesday, December 02, 2008

Portland Pudgy Part 5 - 209

Note: If you got here by another web site or referral, this is only part of a series.  See the entire series.  Click here and start from the bottom.
When the mother ship is tied up at a slip I need a sailing fix.  The sailing rig on the Pudgy does just that for me.  It takes me less than five minute to rig the Pudgy for sailing, and the best part is that the entire sailing rig fits inside the watertight storage compartments inside the dingy.  Sailing also beats rowing from the way out anchorage or mooring field.

How does it sail?  It sails like a bathtub with a mast.  Maybe a little better.  We do not have the performance dagger boards, and I hear that they help the sailing characteristics tremendously.  The present dagger boards are set up more for the self rescue option, I think. It is a stable sailboat, it really likes winds in the 15-20kt range.  Below 8 kts of wind and I can row faster, although I usually don't because it is easier to use the wind and I am not in a rush.  It is a fun boat to sail though, and simple enough that my girls can sail it.  It is stable enough that I don't have to worry about them in the Pudgy alone.





The sailing kit is the main reason we do not have an outboard motor for our Dingy yet.  The sailing kit also makes the Pudgy a viable self rescue craft.

Next up:  The Liferaft Option





Thursday, November 27, 2008

Portland Pudgy Part 4 - 204

Note: If you got here by another web site or referral, this is only part of a series.  See the entire series.  Click here and start from the bottom.
The next most important thing about our Portland Pudgy is it's durability.  When you are a full time cruiser you use your dingy differently than when you are leaving from your home slip and coming back.  The dingy becomes a critical part of your day.  In the above picture we dragged our dingy up on the rocks and left it there for the day while we hiked to a nearby town.  The material the hull is made out of can handle this kind of abuse, unlike our inflatable or our plywood dingy.

This is our boat Precipice hard aground in a port called "Les Mechins".  The tide went out another two feet from this picture, leaving Precipice nearly high and dry.  In order to keep our boat from tipping over and getting damaged (we were surrounded by nice pointy rocks) we ran a halyard from from the top of the mast to each side of the boat tied to two anchors.  I rowed the anchor out with the dingy.  When my wife handed our 45lb. CQR to me while I was standing in the Pudgy it got dropped.  The drop was four feet and landed square in the center of the Pudgy.  Pudgy didn't budge.  None of our three previous dingy's would have survived this abuse.  Also, aside from the inflatable, I wouldn't be standing up in any of them either.  It was on this day, when we spent six hours getting our boat out of the clutches of some nasty rocks, that I was completely happy with my purchase of the Pudgy.   The floor of the dingy and the bottom of the dingy are bonded together with a two inch layer of closed cell foam.  It is incredibly durable.

Wednesday, November 26, 2008

Portland Pudgy Part 3 - 203

Note: If you got here by another web site or referral, this is only part of a series.  See the entire series.  Click here and start from the bottom.
The next couple of posts on the Portland Pudgy are going to be the positives.
I know a little bit about how a Portland Pudgy tows because over the last six months I have pulled the Pudgy about 3100 Nautical Miles.  Towing characteristics are important, because even if you have dingy davits you still end up towing your dingy.  Our first three dingy's where awful for towing.
We had an eight foot inflatable dingy that was essentially like towing a suction cup, and if the wind was over 15kts it would flip over.  It would also fill with water through the day and get heavier and heavier, requiring us to empty it out periodically.
We had an eight foot plywood dingy that did not drag like the inflatable, or tip over as easily in gusts, but it also would fill up through the day and require bailing.
We also had (for two weeks in Florida) a Walker Bay 8 that towed like a little eggshell with no drag, but would also flip over at the first gust of wind.  I don't remember it filling up as quickly as either the plywood dingy or the inflatable, but it still needed to be bailed out and the design of the hull meant that there was always water in the middle right where you needed your feet.  The Walker Bay 8 is probably the most unstable craft I have been in, next to a professional racing canoe.
The Portland Pudgy is none of these things.  It tows with minimal drag, more than the Walker Bay 8, but much less than our inflatable or our plywood dingy.  It doesn't ship water when you tow it,  and if it did, it is a self bailing boat when it is empty.  The design of the Pudgy is two hulls that are filled with foam in between the upper and lower hulls on the floor.  This means that the floor of the dingy is above the waterline.  When you pull the drain plug, instead of filling up and sinking it drains out completely empty.  This single thing makes the Pudgy 1/10 the chore of owning compared to any other dingy we have had.

THE PORTLAND PUDGY IS SELF DRAINING AND THIS MEANS YOU DON'T GET WET FEET USING IT.

Imagine owning a car that every time you used it you got wet feet.  How long would you keep that car?  Now if every car did that you would have to put up with it.  Our dingy is our car.  We use it every day we aren't tied up in a slip, which is most of the time.  We can pull it up the the boat after towing it all day, step in the front and put the drain plug in and have a completely dry floor to put our feet on.  This makes the Pudgy worth every little penny it cost to have the thing.
The Portland Pudgy does not flip in any wind that we have encountered.  We sailed in 35 knot continuous gusting to 45 and the Pudgy just tracks behind us as straight as an arrow.  The oars also do not fall out, cannot fall out, so we can leave them attached in any conditions.  The Pudgy is always ready to use.
The Pudgy under tow is one of its best attributes.


I will be covering the positive aspects of the dingy in the next couple of posts.  I will get to the negatives if you are thinking that this is a company stooge feeding you propaganda.  In fact dealing with the company has unfortunately turned out to be a "neutral" experience (in the eBay use of the word), but I will get to that later.


Tuesday, November 25, 2008

Portland Pudgy Part 2 - 202

Note: If you got here by another web site or referral, this is only part of a series.  See the entire series.  Click here and start from the bottom.
My wife pulling the Pudgy along on the built in wheels.

In April I ordered a Portland Pudgy dingy sight unseen.  I promised that I would tell everyone how I liked it six months later.  Well, here is the beginning of the series two months late.  I will say that that the dingy is everything that I hoped with almost all positive results, with a few rather large but easily correctable negatives.  I think I will start this series of posts just familiarizing you with the craft and get into the positives and negatives in later posts.

The first thing you need to know about the Portland Pudgy is that this is a serious tool meant for serious use.  The name is a little whimsical, but this is an expedition level tool built for everyday use and abuse.  I really think that the company should market to governmental agencies and explorers for this craft because of it's versatility.  I owned, for a short time, a Walker Bay 8.  When I was looking to build my own dingy or buy one the Walker Bay is what I was trying to match.  Now that I own the Portland Pudgy I realize there can be no comparison.  For the type of sailing that I do, I would never consider owning a Walker Bay after using the Portland Pudgy for a season.  Our boat and our lives depend on our dingy working at any time for any reason.  When your wife is dropping a 45 lb CQR four feet down to you, you don't want to be worrying about stability, strength, and tubes full of air.

If you are a coastal sailor that uses your dingy once or twice a month, a Walker Bay is a great (if not a little unstable) craft.  If you are sailing full time, the Portland Pudgy should be on your short list of craft to check out.    Next Up: How I use the Portland Pudgy.


Friday, November 21, 2008

Installing Windvane Self Steering Gear Part 7 - 198

Note: If you have been referred here by another site, this is only part of a multipart series.  To see the rest of the story click here and start from the bottom.


After you are completely sure that you have the precise location for your hole, you get to drill the hole.  I was pretty apprehensive about drilling the hole thinking it would be the most difficult job of installing the windvane.  The reality was drilling the hole was easy.  I am sure many people look at the Cape Horn windvane and say to themselves,  "I am never drilling a hole that big in my boat", but after I installed the vane I realized I was just being silly.  I have four seacocks in my vessel.  If I wanted a watermaker I would probably have five.  The design of the Cape Horn windvane makes it an integral part of the vessel.  The one simple hole allows a extremely strong, yet beautiful matching of the vane to the boat.

What you need to drill a straight hole in the right place:

1. A high quality (meaning more than 25 USD) hole saw and bit.
2. A small machinists  bubble level (six inches or less)
3. A square.
4. A bit extender
5. Three people.

 The bit extender makes your drill/holesaw longer so that you have a better chance of lining things up.  I put my level directly on the extender so I knew that my hole was being drilled completely level.

My wife held a square next to the drill and bit, making sure the hole was being drilled exactly in line with the center line of the boat, and my daughter watched us to make sure it looked right and take pictures.  We did all of this with the boat in the water.  If I had access to a floating dock, I would back up to it and work off the dock.  My last choice would be to do this work out of the water.  I would be to worried that the boat would be sitting in the stands different than when floating.

This picture is a picture of a hole saw coming through the inside of the lazarette.   The angle of the transom makes the hole go through it at an angle.  It would seem like drilling a hole so large through something off angle would be difficult, but the hole drilled very easily and keeping the drill level and square was easy also.  Notice that I have things in the stern labelled for help in identifying exactly where everything was going to end up.


The completed hole.  Notice that the shape of the piece that I drilled out.
Again, drilling the hole was easy.  If you are worried about installing the windvane as being something difficult, the hardest part is figuring out where it is going to go.  Installation was straightforward with the right preparation.

Next up, mounting the unit.



Thursday, November 20, 2008

Installing Windvane Self Steering Gear Part 6 - 197

Note: If you have been referred here by another site, this is only part of a multipart series.  To see the rest of the story click here and start from the bottom.
The installation manual that comes with the Cape Horn windvane is very thorough and is obviously the culmination of years of refinement of what people need to install a complex piece of equipment like a windvane.  The owners manual starts out first with operation of a windvane.  I think that this is very important because it would be very easy to install the windvane incorrectly if you don't know how it operates.  When you first get the windvane you probably don't have much experience operating one and the one that you have is in pieces.  It paid me well to spend about a half hour reading about how my windvane operated, how it was set up, and just spend a little more time seeing how part A relates to part B.

Now FINALLY we get to the installation part.

1. Step one of installation is to position the gear.  Because you have everything labelled and laid out now, this will be easy.   Take the gear, and place it where it will go after you have drilled the hole.  Holding the gear in place have someone else move the rudder from lock to lock.  Do this with the emergency tiller mounted also.  And if you have an in cockpit bilge pump, move that also.  Also have someone swing the boom overhead.  Make sure that as you hold the mounting tube (the main horizontal tube that on an integrated unit goes through the hull) you hold it parallel to the center line of the boat.     You are trying to make sure that your intended installation location doesn't conflict with your rudder, tiller, steering quadrant, cables, boom, mizzen mast, bilge pump, emergency tiller, dingy davits, life raft, and man overboard system.  Again, this is easy to mess up.  Do the same thing with the windvane quadrant and control rod inside the boat.  Move everything to maximum extension.  Try to imagine the boat heeled over on it's side.  Try to imagine getting things in and out of spaces the windvane will occupy.

This may sound like a lot of work, but actually is easy to do if you have everything laid out and labelled.  It is much easier now to make corrections, than to have to make major changes in your rig or steering system because you are committed because of a hole in your vessel.

This is the same process I go through with any marine gear I install, and it really has nothing to do with the complexity or lack thereof in the Cape Horn gear.


The next step is to trace the center of the mounting tube and drill the smallest hole in that spot you can manage (1/8th inch or smaller).

NOW STOP.

Re-check everything you just checked above inside and out.  It is easy to plug this hole and put one in a different spot, and you can move at least 1.5 inches in any direction from that hole and still be within the radius of the final space of the mounting tube.  Play around.  Imagine how everything works.  Go out to lunch.  Take a nap.  Come back and check everything again.
At this point you should have a completely solid understanding of how all of this is going to fit together and the spaces each part will occupy in their total operating range.

If everything checks out the next step is drilling the mounting tube hole.






Wednesday, November 19, 2008

Installing Windvane Self Steering Gear Part 5 - 196

Note: If you have been referred here by another site, this is only part of a multipart series.  To see the rest of the story click here and start from the bottom.

After laying every part of the windvane out and labeling each part, I started measuring the spot where the windvane was designed to go.  This was all done in preparation to build the vane, but now I am making sure the vane was built correctly, and to double check and make sure what Yves and I thought would work a month an a half ago will work now.   I take drilling a hole in my boat pretty seriously.  If I get it wrong, I have to live with it forever.  It is extremely easy to drill holes in the wrong place, or find that the hole you drilled goes right through something important.  On my installation I found I had to go down about an inch and a half from where we originally thought we could go because the upper board for the transom would have been cut in half and I didn't want to loose that strength.    I marked everything with pencil and I marked both sides to make sure I knew EXACTLY where everything would end up.
This all may seem obvious, but I have messed things like this up before on other installations.





Catch up with us here.

Tuesday, November 18, 2008

Drying out on the Tide - 195

Drying our boat out with the tide is always something that we have wanted to try, but because we have no tides in the Great Lakes it hasn't been a possibility.  Newfoundland's maximum five foot tide was just right for what we needed.  See more pictures here.



Thursday, November 13, 2008

Installing Windvane Self Steering Gear Part 4 - 187

Note: If you have been referred here by another site, this is only part of a multipart series.  To see the rest of the story click here and start from the bottom.
This is what your windvane looks like when you first receive it.  A box of parts.  If you ever received an unassembled bicycle as a gift when you were a child, this is very similar.  Every part is beautiful.  Again, I am going to beat the preparation drum when it comes time to install your windvane.  I would suggest taking a marker and labeling each part as it is called in the installation manual so that you know what each part is called before you start assembling and BEFORE you start measuring the boat for drilling holes.
It took me an actual 8 hours to install my windvane, and everything went well with no cursing and holes in the wrong place.  I know how incredibly stupid I can be during the installation process, but I have found through the years that and hour of prep time saves three hours of installation and setup time of anything I touch.   I have heard of people spending a week trying to get a windvane on their boat.  A week of ten hour days.  Over 60 hours.
Stop, slow down, mark, touch, lay the whole thing down on the ground and get familiar with it.    Now, before you rush to the drilling holes part.



Monday, November 10, 2008

Installing Windvane Self Steering Gear Part 3 - 187

Note: If you have been referred here by another site, this is only part of a multipart series.  To see the rest of the story click here and start from the bottom.
A hole in my Boat

The picture above is what I had to do to install my self steering gear.  Any windvane gear you install entails drilling holes in your vessel.  Drilling the hole was relatively easy.  Figuring out where to drill the hole should be approached with fear and trembling.  I am extremely lucky that Yves wanted to come out to my boat to measure it for his gear.  This was important in two ways:

1. The cape horn gear has many configurations.  I was thinking of a much more complex way than what Yves suggested when he came to my boat.

2. The time spend measuring the boat for the equipment probably cut my time in half when it came time to install the equipment.

I realize that bringing your boat to Yves, or flying Yves out to your boat is probably not something that is economically feasible, although it is something that Yves will do and the people who do have Yves come out rave about how great a job he does.   It is VERY IMPORTANT to realize that prep time spent now in the initial pre build stages define how everything from here out is going to go.  Installing the vane is actually easy.  Deciding how the vane is going to mount, and where is the hardest part of getting a windvane on your boat.  Slow down, take pictures of your stern, stern lazarette, and rudder and send them to Yves.  Send emails back and forth.  Make drawings with measurements.  Make mock up models out of cardboard shipping tubes.  Do whatever it takes to have a rock solid idea of how the windvane is going to mount and what it is going to take to put it on.  Do this and the job will go easy.  Yves will be patient and encouraging.  You will feel like he wants nothing more than for you to have the best working windvane in the world.  Which he does.  Next up: The windvane arrives.



Saturday, November 08, 2008

Installing Windvane Self Steering Gear Part 2 - 185

Note: If you have been referred here by another site, this is only part of a multipart series.  To see the rest of the story click here and start from the bottom.
Montreal is a pretty city as far as cities go.

In an earlier post I talked about why I decided to trust Yves Gelines.  Once I made that decision, I needed to verify if Yves was full of crap or not.  Fortunately, I was also trying to nail down my route around the Great Lakes and further.  Yves builds the Cape Horn windvane in Oka, Quebec.  Oka is in the backyard of Montreal, which is right on the St. Lawrence seaway route out of the Great Lakes.  So the main thing that pushed me over the edge between taking the Erie Canal out of the Great Lakes or the St. Lawrence seaway was I could visit Yves.  Why not?  When I got near Montreal I called Cape Horn and they happily agreed to pick me up from the train station near Oka.  The embarrassing part of all this is when Yves came to pick me up, I didn't recognize him immediately.  He was very gracious and took me to their factory.  What I found was a minuscule machine shop dedicated to building one product.  Everything was neat and orderly, and everything was geared toward quality.  In talking to Yves it became apparent to me that he and his company are dedicated to taking care of the customer, and building a quality vane.  I put my hand on the actual product, looked at the windvane installed on his boat, inspected the welds on vanes in progress (beautiful work) and put my eyes on the operation.  After 20 years of working in the automotive field and visiting shops all over the continent, I have gotten pretty good at sizing up what is a poorly run low quality and what is top notch.  Yves is upper level.  The next thing that happened was probably the most important.  Yves offered to drive the 45 minutes to my boat and measure it himself.



Friday, November 07, 2008

New York is the Polar Opposite of Newfoundland - 183

I spent a week with Rachael in New York city to get her Catalina 27 ready to sell, and ready for winter.   While in NY, I took a drug test, got a physical and updated my emergency first aid/cpr certification.  I also sat for my Ham Radio exams.  I took the class with Deb and Rachael two and a half years ago, but the night of the test I couldn't make it because I ended up dealing with some unruly customer at work (ahhhhhh, I really miss that!) and never took the test.  I took the technicians test and passed with three wrong.  The people administering the test said that since I did so well I should take the General test, the next level up.  I took it and failed by one question. ( I was guessing on a bunch of them, this is no easy little test like drivers training or something)  the group there encouraged me to try again, which I did and I passed by one question.  I walked out a happy boy.

Thursday, November 06, 2008

Installing Windvane Self Steering Gear Part 1 - 182

Note: If you have been referred here by another site, this is only the first part of a multipart series.  To see the rest of the story click here and start from the bottom.
 I spent about ten years researching the windvane question.  Next to choosing the boat, choosing a windvane was the the most confusing and time consuming part of the cruising equipment equation.  The difficulty of choice was similar to the difficulty of choosing a boat in that windvanes are all equally praised by their owners.  Like a boat, each windvane on the market does it's job.  Like a boat, each windvane has strengths and weaknesses.  Like a boat, everybody that owns one thinks it is the best one made.  Like a boat, windvane owners have little experience with other styles of windvanes.   Very few boats in the Great Lakes have windvanes, as in I might see one boat a year with a windvane.  I did a lot of reading.  I purchased books about windvanes. I purchased plans to build windvanes.  I tinkered around with sheet to tiller rigging. None of the things I did ever satisfactorily answered the questions I had in my mind about windvanes.  In the end, just like the boat, I decided that I was going to have to trust a person.  With my choice of boat, I ended up going with Lynn and Larry Pardey  (which makes many a sailor roll their eyes, but usually the ones who aren't actually out cruising).  With my windvane decision I decided to go with Yves Gelines.



Wednesday, November 05, 2008

Newfoundland - 181

We have been at this trip now for half a year.    This is our home in Quidi Vidi, Newfoundland.  The is about 3100 miles of sailing from where we started.  We will winter here, living in the boat and preparing for the next season.  The girls are being home schooled by Deb.  Follow our continuing adventures here.

Sunday, August 31, 2008

Nova Scotia - 116

. . .we entered the Northumerland Strait with 35 knot winds under storm sails. We left on a gentle downwind run through a sailors paradise. . . .
We have updated pictures here

Thursday, July 10, 2008

A Plot is Hatched - 64

A Plot is hatched. It is discovered that Jannelle's triple insulated foil lunch box is . . . .

Sunday, June 29, 2008

The Journey has begun - 53

Our journey has finally begun ten years after the dream was hatched and five years after the date was set.

Our website is finally live: www.svprecipice.com

Rachael is blogging at: www.sailorrn.blogspot.com

You can track us in real time at: http://share.findmespot.com/shared/faces/viewspots.jsp?&glId=0TFhj0tOoh7Q7FIbfJkeZKuFCsr2Be95i (and keep in mind this system goes down without warning.)

I will keep posting to this blog, but the real meat will shift to our website.

Sunday, June 01, 2008

Getting the Bottom Done - 13




A wood boat of this size has some half mile of seams between the boards. All of the seams were scraped out, primed, repayed, and painted. This took about 160 man hours of work. I wanted to go down to wood below the waterline to find if there was any hidden rot and I found none. This made me very happy, and is a tribute to the quality construction of this vessel.

Sunday, April 13, 2008

Portland Pudgy Part 1 - 26/63

Note: If you got here by another web site or referral, this is only the first part of a series.  See the entire series.  Click here and start from the bottom.

I ordered the Portland Pudgy to serve as a tender/lifeboat for Precipice. I originally was going to build a dingy myself, but found this while searching for plans.

The website:http://www.portlandpudgy.com

I will let you know later how quick it shipped, initial build quality, how it works, and give you a six month quality report.

Saturday, March 15, 2008

The pathetic kitchen sink - 54/91




Precipice came with a really pathetic galley. You couln't stand in front of the sink or the stove. A better place for the diesel heater I thought. Still, it is always a little unsettling to take a sawsall to something that is presently working, no matter how poorly. This little project seemed from the outset to be a simple task. It ended up taking a good part of the winter in stops and starts. I ended up running two separate fuel supplies to the heater, one gravity and one pumped so that the heater will work no matter what direction the boat is heeled. The carbeurator had to be repaced, and so did the water heating coil. In the end though, the heater was blessed more than the pope on those cold days working on the galley.
